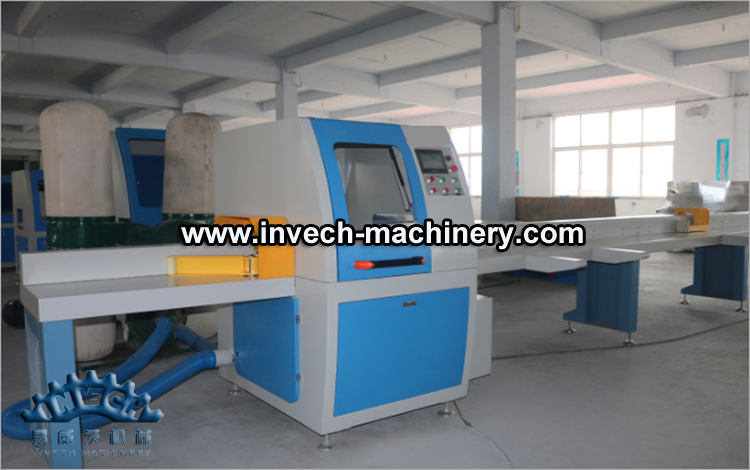

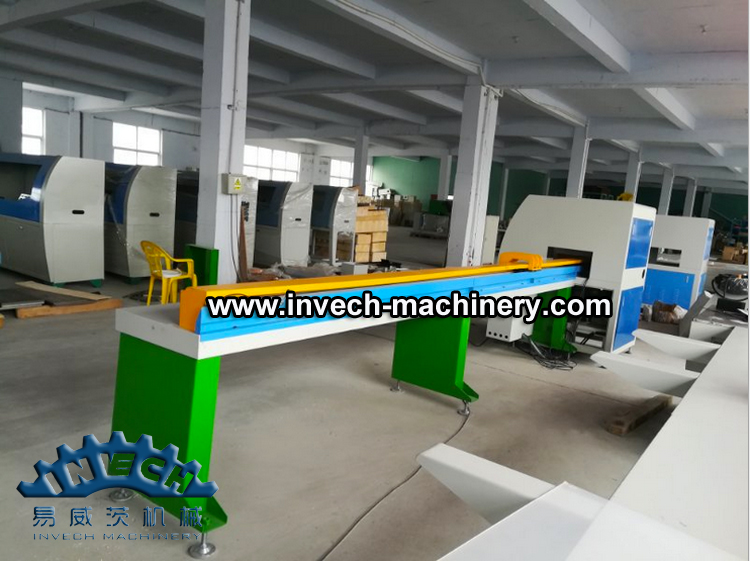

Automatic Cut Off Saw Machine
Application:
The cut-off saw is mainly for planks,pallet panels,blocks cutting and traditional box and furniture small parts processing.
Features:
1. Mitsubishi industrial control, more stable performance
2. Free combination cutting size, reduce production waste;
3. Easy and flexible to equipment, 1 worker can operate;
4. Higher materials rate,reduce the previous cutting wastage;
5. Fast cutting blocks;High precision;Safe and efficient.
6. Safety: The whole operation process, the workers fingers touch less than blade;
Technical Parameters:
Type | Electric cutting saw |
Model | YCS4000 |
Power | 7.5kw |
Max. Cutting Length | 4000mm |
Max. Cutting Height | 120mm |
Max. Cutting Width | 500mm |
Saw Dia | 400/450mm |
Main Rotation Speed | 3500r/m |
Out Size | 5600*1500*1400mm |
Weight | 950kg |
