Plywood Blocks Nailer&Cutter

Author:2017/6/13 22:15:21    Time:2017/6/13 22:15:21    Popularity:0Tags:Waste ​Plywood Block Cutting Machine wood block cutter plywood block nailer

Plywood Block Cutting Machine/Plywood block cutter to reuse the waste plywood,construction boards as well as waste scrap woods for second using,like to be pallet feet.

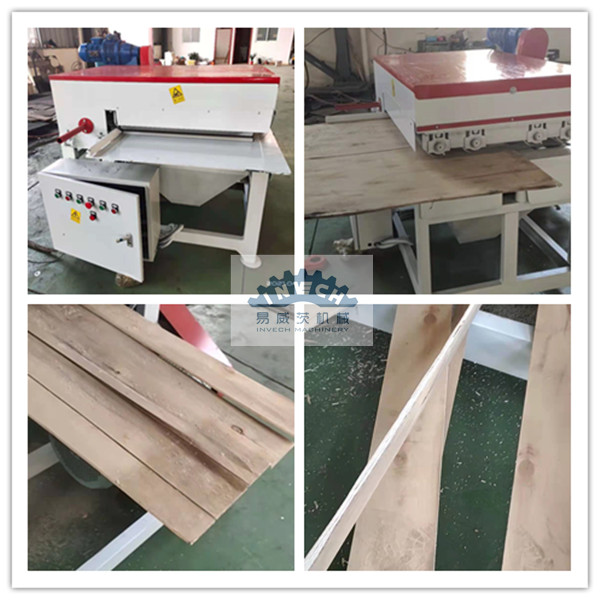

1. Plywood nailing and cutting machine without trimming:

plywood block cutter2.jpg

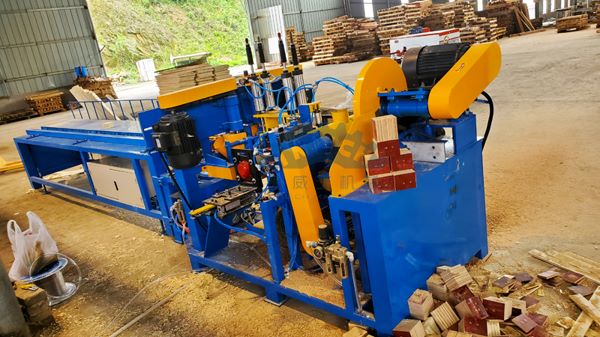

2. Plywood nailing and cutting machine with trimming:

block cutter with trimming.jpg

Technical Parameters:

Name

Plywood   Block Nailer

Total Power

7.5kw

Voltage

380V,50HZ(Customized)

Max.Cutting Speed

1200pcs/hr

Cutting Height

40-120mm

Processing Width

40-100mm

Blade Dia.

350-400mm

Nail Qty

1-3pcs(adjustable)

Out Size

5000*1300*1250mm

Total Weight

1500kg

Plywood block machine-products.jpg

plywood block nailer-packaging.jpg
