Wood Finger Joint Production Line

Author:2026/3/5 14:33:36    Time:2026/3/5 14:33:36    Popularity:0


Brief Introduction

Finger Joint machine can be used for cutting teeth for the production of fine wood, furniture, etc. It is suitable for the reprocessing of waste engineering wood. It is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry, especially suitable for construction company.

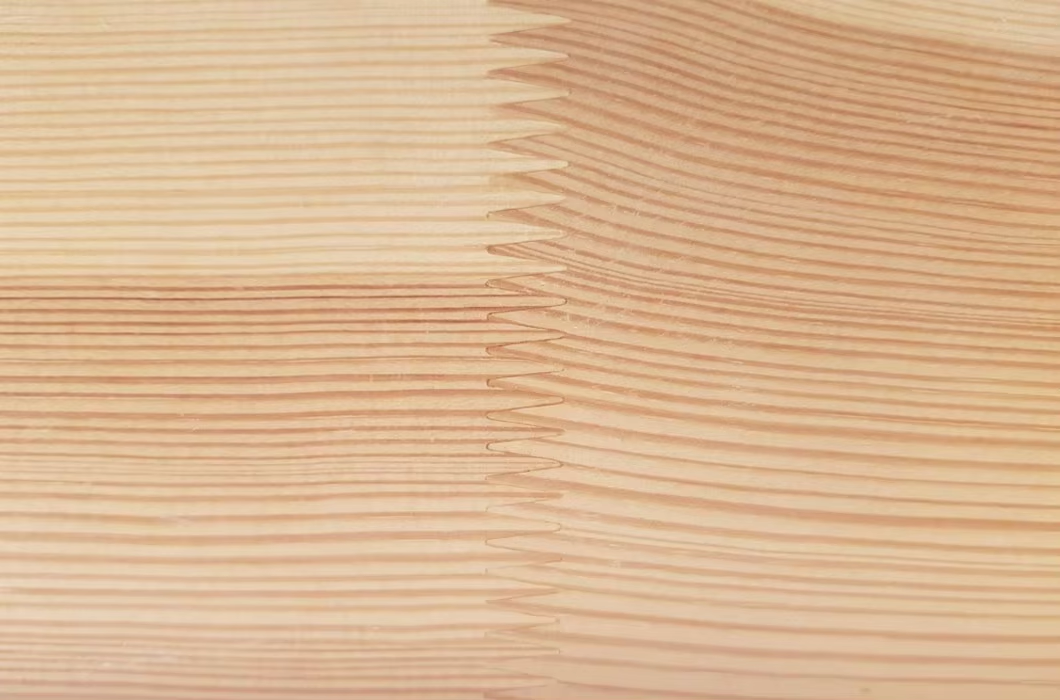

joints 3.png

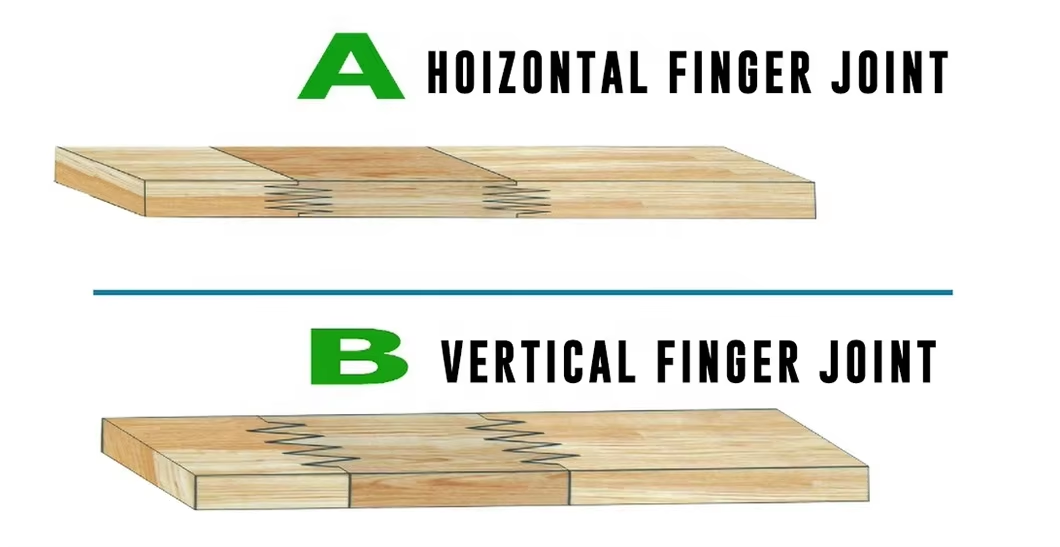

joints 4.png

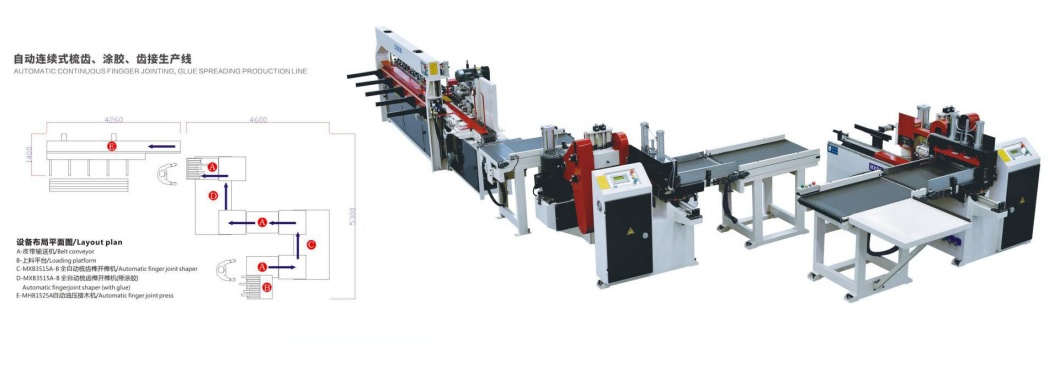

Whole Production Line

Finger Joint Processing Line.jpg

Technical Parameter

Processing Length

2500mm

joint Length

1200-2500mm

Joint Width

35-150mm

Joint Thickness

12-50mm

Saw Shaft Power

2.2kw

Saw Shaft Speed

3700 r.p.m

Max. Joint Force

7.8T

Saw Blade Diamter

355mm

Oil Pump Power

9kw

Feeding Power

1.5kw

Working Pressure

0.8Mpa

Total Power

12.7kw

Out Size

4700*700*1500mm

Weight

1500kg
