Description:

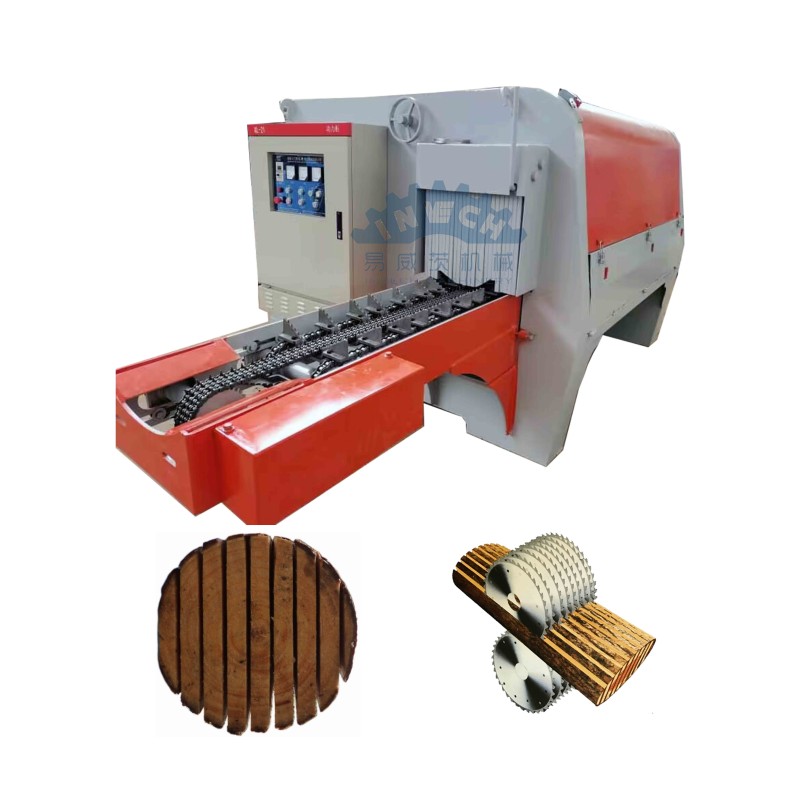

Log Rip Saw Machine is for ripping damp & dry raw wood that without the deturn plane which can cut into pieces of small planks or one middle or two middles big planks and other small planks.

Features:

• Up and down saw spindle, small saw blade dismeter and thin saw kerf

• flat and smooth sawing surface (replace planer);

• energy-saving and low waste due to the multi-blade design;

• high feeding speed and greatly improve efficiency.

• Automatic centering device, fast loading, easy operation and high timberutilization.

• Upper pressing roll automatically increase tensile force to ensure stable feeding.

• Spindle cooling, electric degreasing & cooling functions and external high preasure spray head help save energy and improve cooling effects.

Technical Parameters：

Power of Main Spindle

Motor:30KW+30KW

Power of Feeding Motor:1.5KW

Power:3HP-380V,50HZ

Processing Length:500-4000mm

Feeding Speed:0-9m/min

Processing Log Diameter:80-250mm

Machine size:2900*1300*1550mm

GW:1900 KG
