Blocks Wooden Pallets Nailing Machine

Author:2019/4/19 9:57:46    Time:2019/4/19 9:57:46    Popularity:0Tags:Blocks Wooden Pallets Nailing Machine for EU or EPAL palelts nailing CP pallets nailing and all different blocks pallets processing

Blocks Wooden Pallets Nailing Machine is for EU or EPAL palelts nailing,CP pallets nailing and all different blocks pallets processing

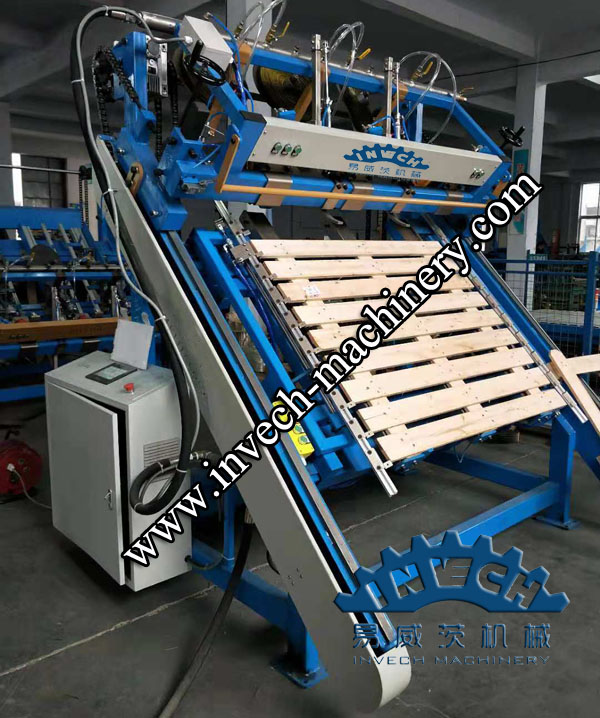

blocks wood pallet nailing machine.jpg

Technical Parameters:

Product name

Top Deck Nailing Machine

Model

YBP-1300

Working mode

Man hand feeding and automatic nailing

Operation mode

PLC Control

Operational mode

Pneumatic operation

Voltage and  power

 380V  three-phase50hz, 2kw Servo motor

Air pressure

0.8MPA

Tank size

0.2 cubic

Nail gun speed

7 times /second.

Production effciency

400-500 pcs/8hrs by one person

Apply a nail

Less than 80mm

Weight

2000kg

Size

Host machine 2283*1899*2320mm

Weight

2000kg/set

The whole processing including top deck nailing,blocks deck nailing and assembly machine.

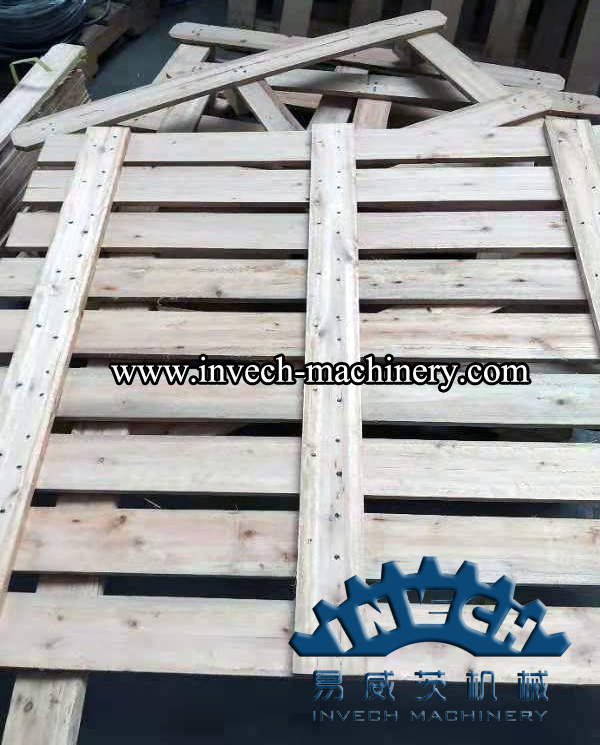

wood pallet deck nailing machine.jpg
