Wood Pallet Dismantler Machine

Author:2024/6/14 17:05:40    Time:2024/6/14 17:05:40    Popularity:0

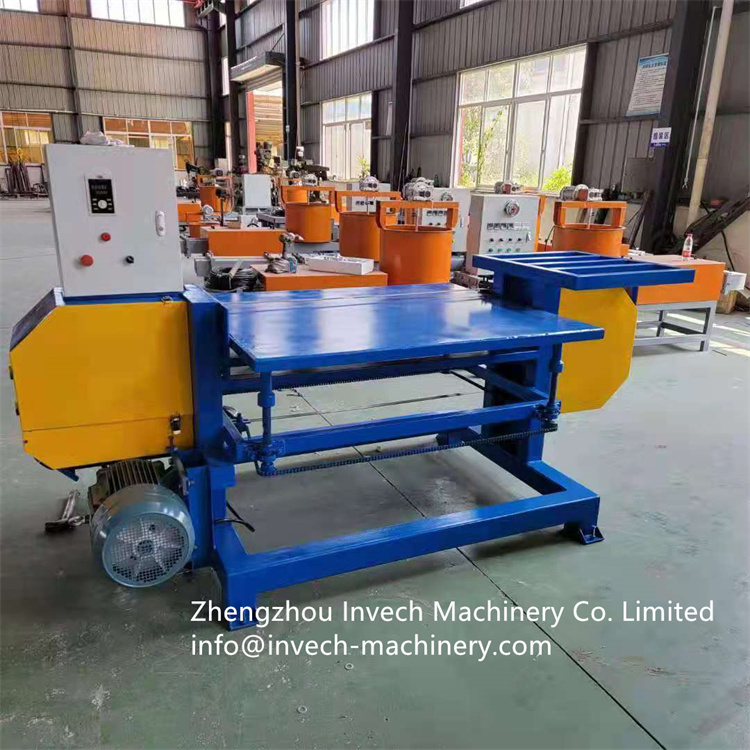

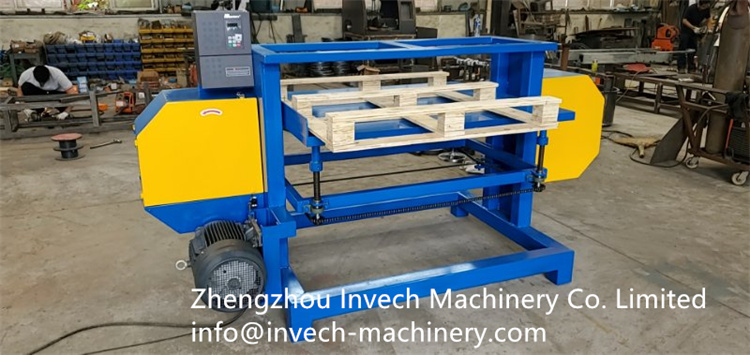

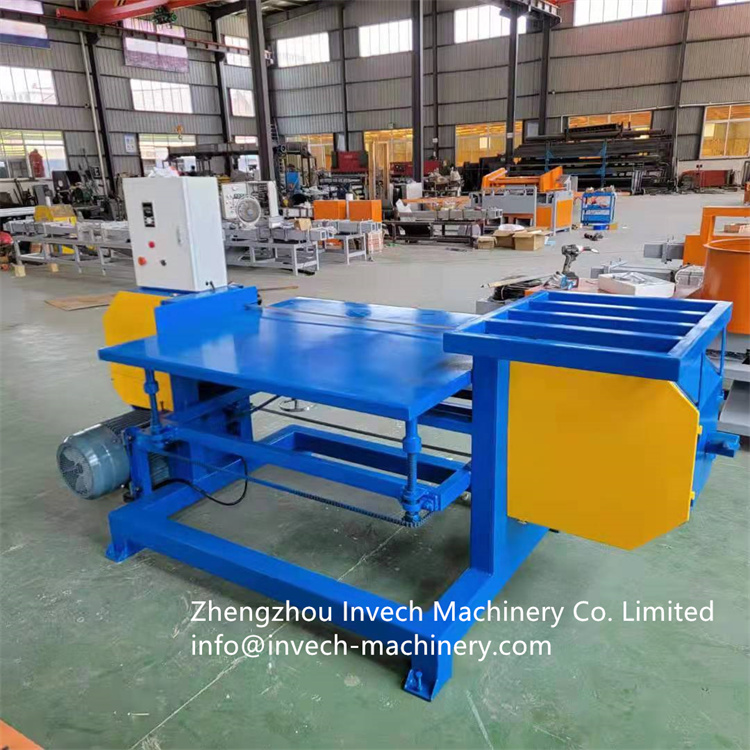

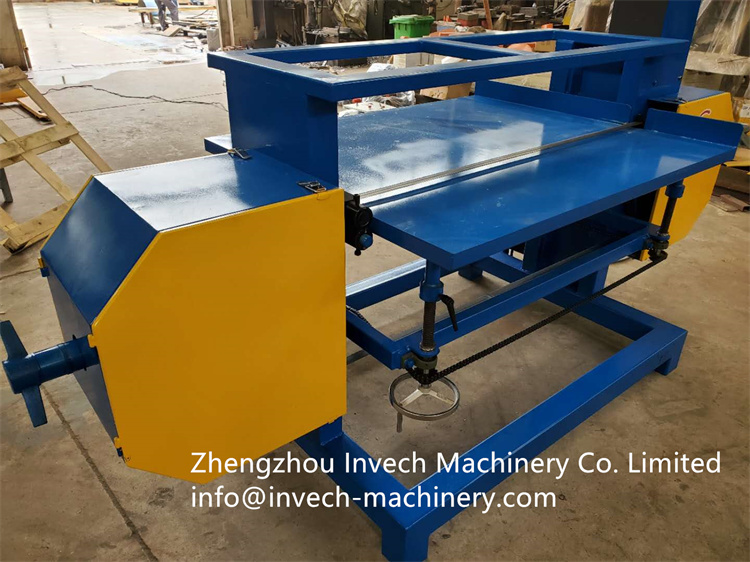

Wood Pallet Dismantler Machine

Brief Introduction:

1. This simantler machine is designed for a full range of pallet recycling including pallet repair, dismantle, and recovery.Due to the unique combination of high torque and low RPMs,        the pallet dismantler has an expected blade life of 1,000 to 1,500 dismantled pallets per blade which is nearly double the blade life of competitive pallet dismantling saws.

2. This wood pallet disassembling machine is designed for one or two workers.

3. A sturdy welded steel tube frame of the pallet dismantler that firmly supports two pneumatic wheels.


4. The bi-metal blade that cuts the nails to dismantle the pallet is powered by a 7.5kw electric motor with a gear reduction drive.

5. A pneumatic table lift has preset heights to enable quick and convenient shifting between upper and lower cut points to easily remove stringer boards, blocks, and deck boards of a pallet.

Technical Parameters:

Table Width

1400mm

Table Length

1200mm

Cutting Thickness

5-150mm

Saw Wheel Diameter

500mm

Motor Power

7.5kw

Nail Cutting Saw Blade

5850*34*1.05mm

Working Capacity

30-50pcs/hr

Out Size

2800*1500*1500mm

2950*1350*1670mm(Packing Size)

Weight

800kg
