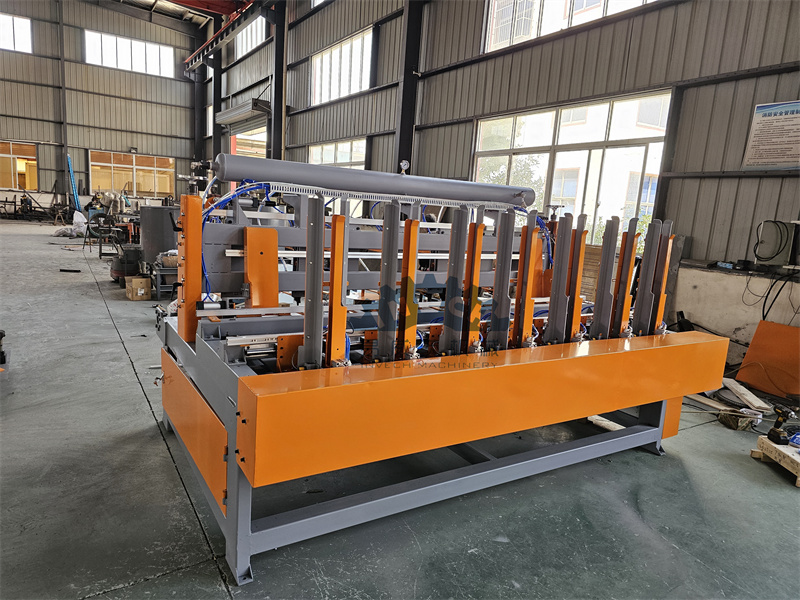

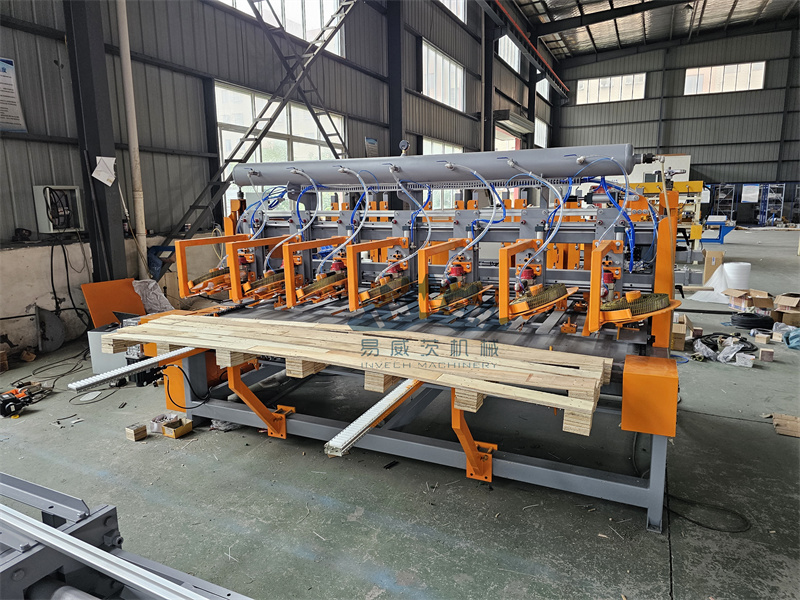

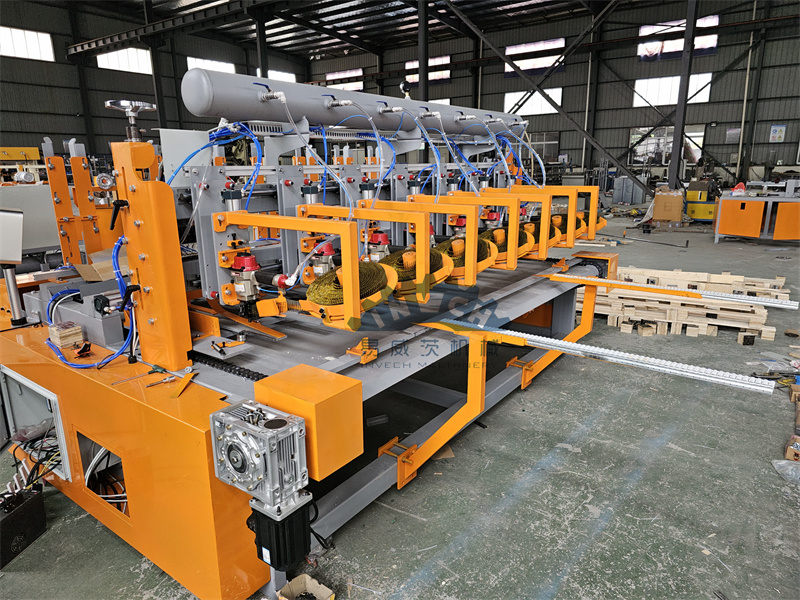

Wood Pallet Leg Nailing Machine

Author:2023/7/12 10:42:58    Time:2023/7/12 10:42:58    Popularity:0

Brief Introduction:

Automatic wood pallet leg nailing machine is for wood pallet blocks and boards connection.

There are three or four or five guns to equiped.and can be moved or used any one.

The nails number can be 2-4pcs accodring to your reuqest.

Blocks numbers can becustomized from 3pcs to 7pcs and length customized too according to your needs.

Gun brand is Max which is more precision.


Technical Parameters:


Item 品名

Panel Block Nailing Machine 连墩机

Capacity 产量

600-800pieces/hr

Total Power功率

0.75kw

Gun

3 pieces(guns movable and can use any one)

Nail pieces on blocks 钉数

2-4

Nail Size 钉子规格

35-70mm

Board Length 板子长度

800-1300mm

Board Width 板材宽度

80-160mm

Board Thickness 板材厚度

Min.12mm

Block Width 脚墩宽度

70-150mm

Block Length 脚墩长度

70-150mm

Block Thickness 脚墩厚度

80-120mm

Out Size 尺寸

2000*2000*1800mm

Weight 重量

1800kg
