Brief Introduction

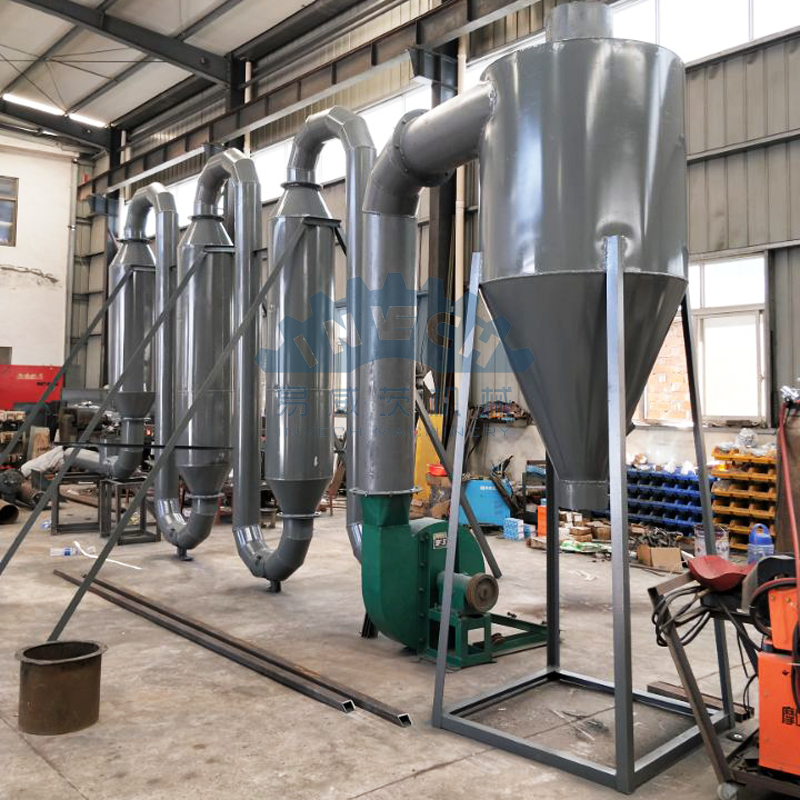

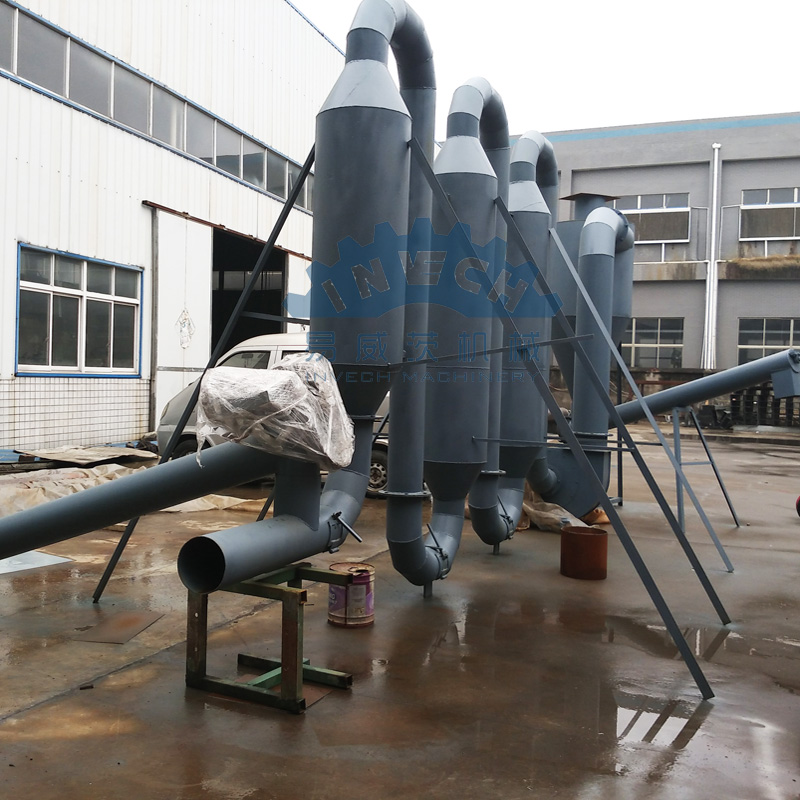

Air-flowing type Dryer machine ,also known as hot air pipeline drying machine ,using the principle of airflow drying instantly ,loading the wet wood shavings and sawdust into the drying tube by the screw conveyor.Under the transport and dispersion of the high speed hot air, the moisture in the wet material is evaporated,then we can get the dry final product for further processing.
Technical Parameters:
Model | YDM-300 | YDM-500 | YDM-800 |
Capacity(kg/h) | 300-400 | 400-500 | 700-800 |
Power | 4kw | 10kw | 15kw |
Package size(m) | 1.5X1.22X0.98+2.3x1.4x1.5 | 1.45x1.2x1.0+2.5x1.9x1.5 | 2.24*1.63*1.61+1.55*1.2*1.5 |
Wood Waste Consumption | 10-15kg/h | 25-30 kg/h | 35-40 kg/h |
Weight (kg) | 1500 | 1800 | 3000 |
Other Related Machines:

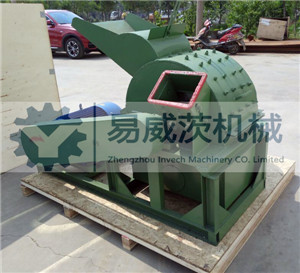

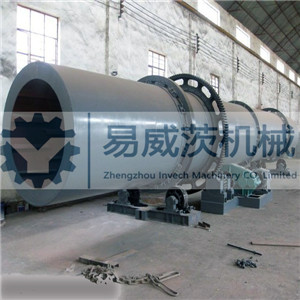

1. Wood Crusher 2. Drum Sawdust Dryer

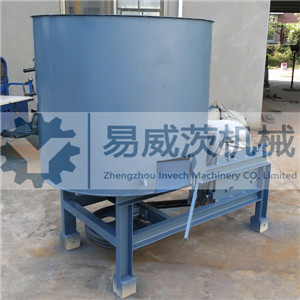

3. Sawdust Glue Mixer 4. Wood Block Machine
