Pipe Wood Sawdust Drying Machine/Dryer

Author:2017-10-26 9:05:30    Time:2017-10-26 9:05:30    Popularity:0

Brief Introduction

Air-flowing type Dryer machine ,also known as hot air pipeline drying machine ,using the principle of airflow drying instantly ,loading the wet wood shavings and sawdust into the drying tube by the screw conveyor.Under the transport and dispersion of the high speed hot air, the moisture in the wet material is evaporated,then we can get the dry final product for further processing.

Technical Parameters:

ModelYDM-300YDM-500YDM-800
Capacity(kg/h)300-400400-500700-800
Power4kw10kw15kw
Package size(m)1.5X1.22X0.98+2.3x1.4x1.51.45x1.2x1.0+2.5x1.9x1.52.24*1.63*1.61+1.55*1.2*1.5
Wood Waste Consumption10-15kg/h25-30 kg/h35-40 kg/h
Weight (kg)150018003000

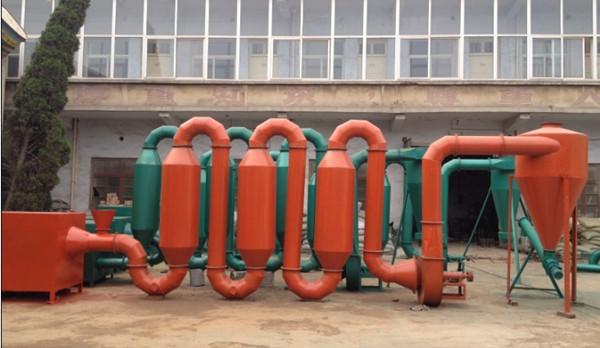

 drying machine-1.jpg

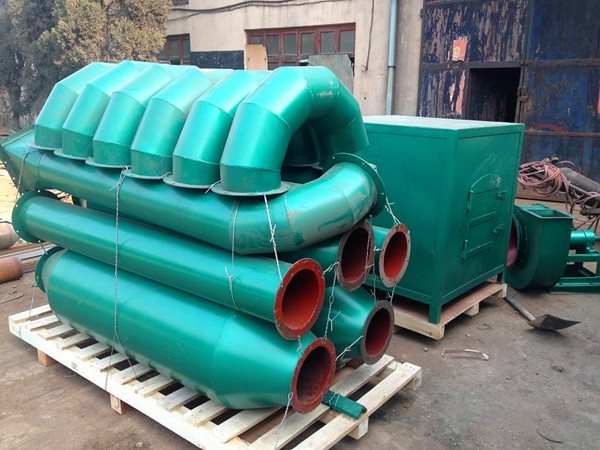

drying machine-packing.jpg

Other Related Machines:

1. Wood Crusher                                              2. Drum Sawdust Dryer

sawdust crusher.jpg DRUM DRYER 600.jpg

3. Sawdust Glue Mixer                                  4. Wood Block Machine

sawdust glue mixer0.jpg  wood sawdust block machine.jpg
