Six Head Wooden Pallet Feet Making Machine

Author:2017/3/27 11:52:55    Time:2017/3/27 11:52:55    Popularity:0Tags:wooden pallet feet machine wood block machine wood sawdust hot pressing machine wood pallet block extruding machine

Six Head Wooden Pallet Feet Making Machine

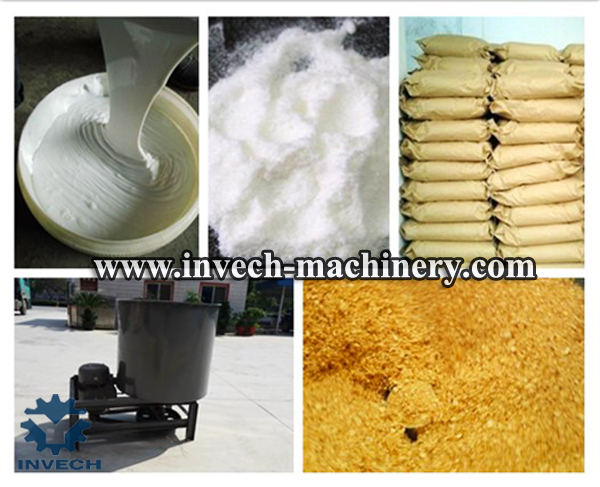

Raw Materials for Wooden Pallet Feet/Blocks:

Waste wood, wood sawdust, wood shavings, wood chips, tree branches, barks, waste wooded pallets etc.

raw materials.jpg

Glue for wooden pallet feet/blocks making:

The glue can be liquid and powder,if liquid,the content should over 56%;if powder,it must

mixed with water before adding to sawdust.

UF Glue for Blocks.jpg

Six Head Wooden Pallet Block/Feet Making Machine Features:

1.       The machine can be customized as your request. You just need tell us what you want or a draft drawing, we can provide you the suitable machines.

2.    The raw materials could be sawdust, shavings, branches, used wooden pallets or waste wood. That would be useful to recycle waste material and be a environmentalist.

3.       It's used hydraulic transmission, horizontal driving the mould to continuous extruding wood blocks and no interruption.

4.       Our machine is easy to operate,1 person can look after 3 working machines. Just set the parameters of the machine and feeding raw mixed materials, then you can wait for the out blocks.

5.The final products of the machine have smooth and beautiful surface with a large carrying capacity. They are strong, durable and away from worms.

Machine Details:

1.       The length of heating plate has been improved from 150mm to 200mm.Suitable length makes the heating plate work more evenly and faster.

2.    Powerful feeding system is driving by a motor. By promoting the ability to stir, the feeding system works more automatically and high-efficiency, Which is better suitable for automatic production.

3.    We use the hydraulic propulsion system to provide more stable impetus, which will improve the quality of final products.

 Specifications for Wooden Pallet Feet Block Machine

Model

YHP-2

YHP-4

YHP-6

Size

4900*600*1800

4900*800*1800

4900*940*1800

Capacity

2-4m3/24hr

4-6m3/24hr

6-8m3/24hr

Glue   Consumption

90-100kg/m3

90-100kg/m3

90-100kg/m3

Density

550-600kg/m3

550-600kg/m3

550-600kg/m3

Power

12-15kw

18-25kw

24-30kw

Weight

1000kg

1200kg

1500kg

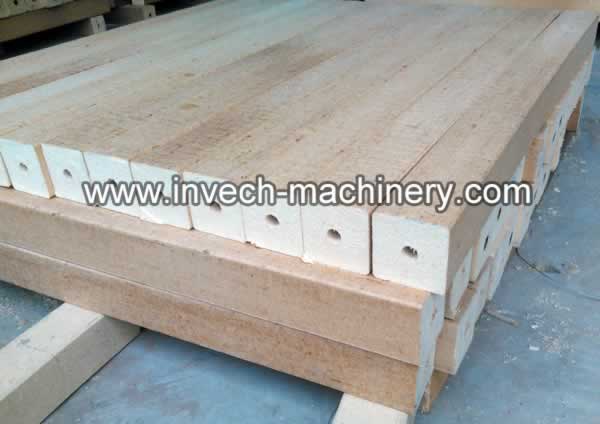

Final Products:

pallet block machine-samples.jpg

Other Related Pallet Machines:

1. Robot wood pallet nailing machine        2. Automatic wood pallet making machine

robot pallet nailing machine.jpg    automatic wood pallet machine.jpg

3. Wood Pallet Block Cutter                        4. Wood Pallet Notcher

wood block cutter.jpg   wood pallet notcher.jpg
