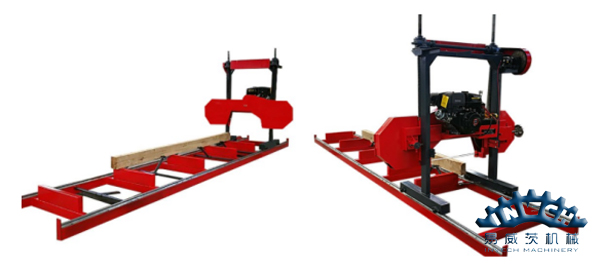

Portable Horiaontal Band Saw Machine
A.Mini Horiaontal Band Saw Machine
SH-24E | SH-24G | |
Max. wood diameter | 600mm | 600mm |
Band wheel diameter | 480mm | 480mm |
Max. sawing thickness | 150mm | 150mm |
Max. Length of the wood | 3100mm | 3100mm |
Power output of gasoline engine | 7.5kw | 15 HP |
Rail length (standard model) | 2000mm*2 | 2000mm*2 |
Total weight(standard model) | 500kg | 500kg |
Saw Blade Width | 27mm-35mm | 27mm-35mm |
B. Portable Horizontal Band Saw Mchine(Electric Type)
Technical parameter | MJ700E | MJ1000E | MJ1300E | MJ1600E |
Cutting max. diameter | 700mm | 1000mm | 1300mm | 1600mm |
Band wheel diameter | 600mm | 700mm | 700mm | 700mm |
Sawn lumber thickness | 10-250mm | 10-300mm | 10-300mm | 10-300mm |
Cutting max. length | 4500mm | 4500mm | 4500mm | 4500mm |
Electric motor power | 7.5kw | 11kw | 15kw | 18.5kw |
Lifting motor power | 1.1kw | 1.1kw | 1.1kw | 1.1kw |
Tension blade mode | manual | manual | manual | manual |
Machine length | 5800mm | 5800mm | 5800mm | 5800mm |
Total weight | 600kg | 1100kg | 1300kg | 1500kg |
Technical parameters | MJ700P | MJ1000D | MJ1300D | MJ1600D |
Cutting max. diameter | 700mm | 1000mm | 1300mm | 1600mm |
Band wheel diameter | 600mm | 700mm | 700mm | 700mm |
Sawn lumber thickness | 10-250mm | 10-300mm | 10-300mm | 10-300mm |
Cutting max. length | 4500mm | 4500mm | 4500mm | 4500mm |
Diesel engine motor | 13HP Petrol | 22HP | 25HP | 27HP |
Sawmill lifting | hydralic | hydraulic | hydraulic | hydraulic |
Machine length | 5800mm | 5800mm | 5800mm | 5800mm |
Total weight | 700kg | 1100kg | 1300kg | 1500kg |
